SLOT HEAD FIXTURE

Slothead Fixture

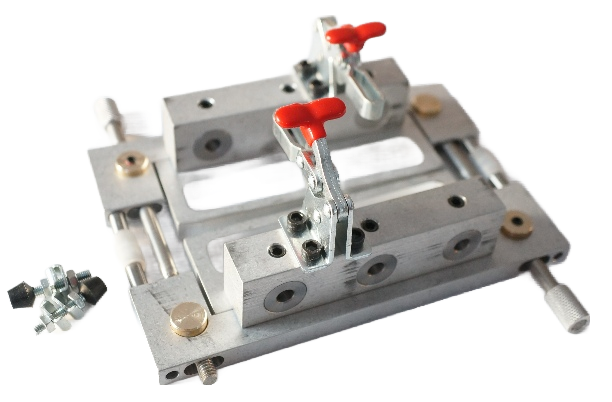

Only one set up and the tuner holes and slots can be cut. The fixture can be adjusted so that the one side is always symmetrical to the other side, keeping everything centered. This new improved version now allows for center clamping with complete height adjustment for various peg head thickness. The soft pads on the spindles will prevent any damage to the back of the peg head. This tool has become the industry standard for slot head cutting jigs.
                 USER MANUAL

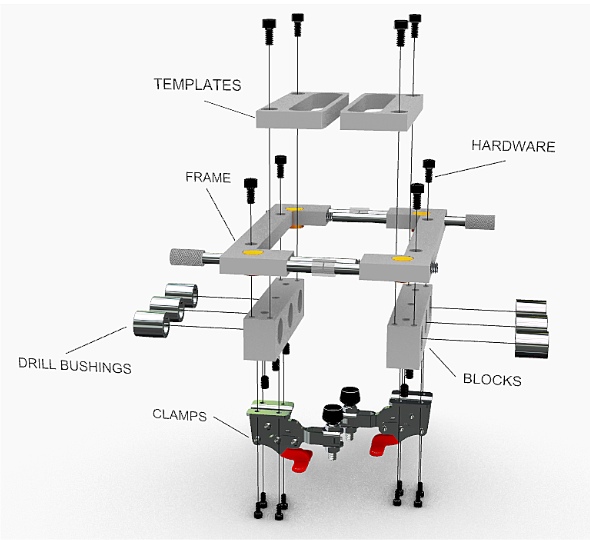

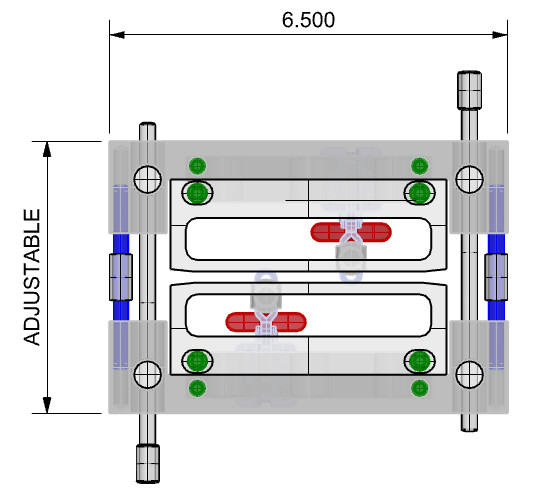

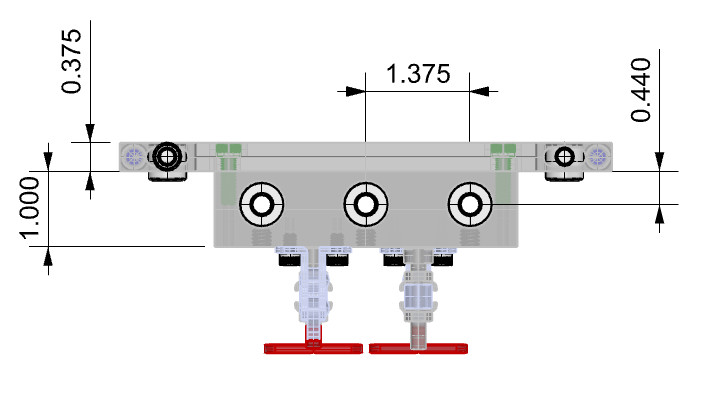

slot head fixture is typically comprised of the following components:
1. The Frame
2. The templates
3. The blocks
4. The drill bushings
5. The clamps
6. Hardware
The assembled fixture can be ordered in different options which comes complete as shown.

These option are:
A. Classical
B. Steel string
C. Vertical
D. Ukulele

Additional blocks, drill bushings and templates can be added to the order for different slot head styles.
Recommended Trim Router
DeWalt: DWP611
Bosh: "Colt"
Classical
13/32" bushings
More
Steel string
1/4" bushings
More
Vertical
1/4" bushings
More

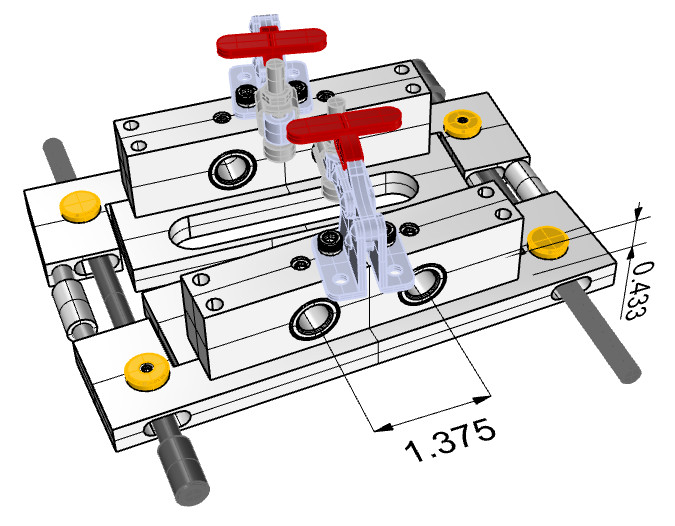

Ukulele
1/4" bushings
More
Classical template set
bushings not included
Steel string template set
bushings not included
Ukulele template set
bushings not included
Verical template set
bushings are pressed in
Standard block set
bushings not included
Ukulele block set
bushings not included
Bushings 1/4"
Qty=6
Bushings 13/32"
Qty=6
Custom template set
Specify:
Length, width, margin and square or round
