NECK ANGLE JIG

Neck Angle Jig

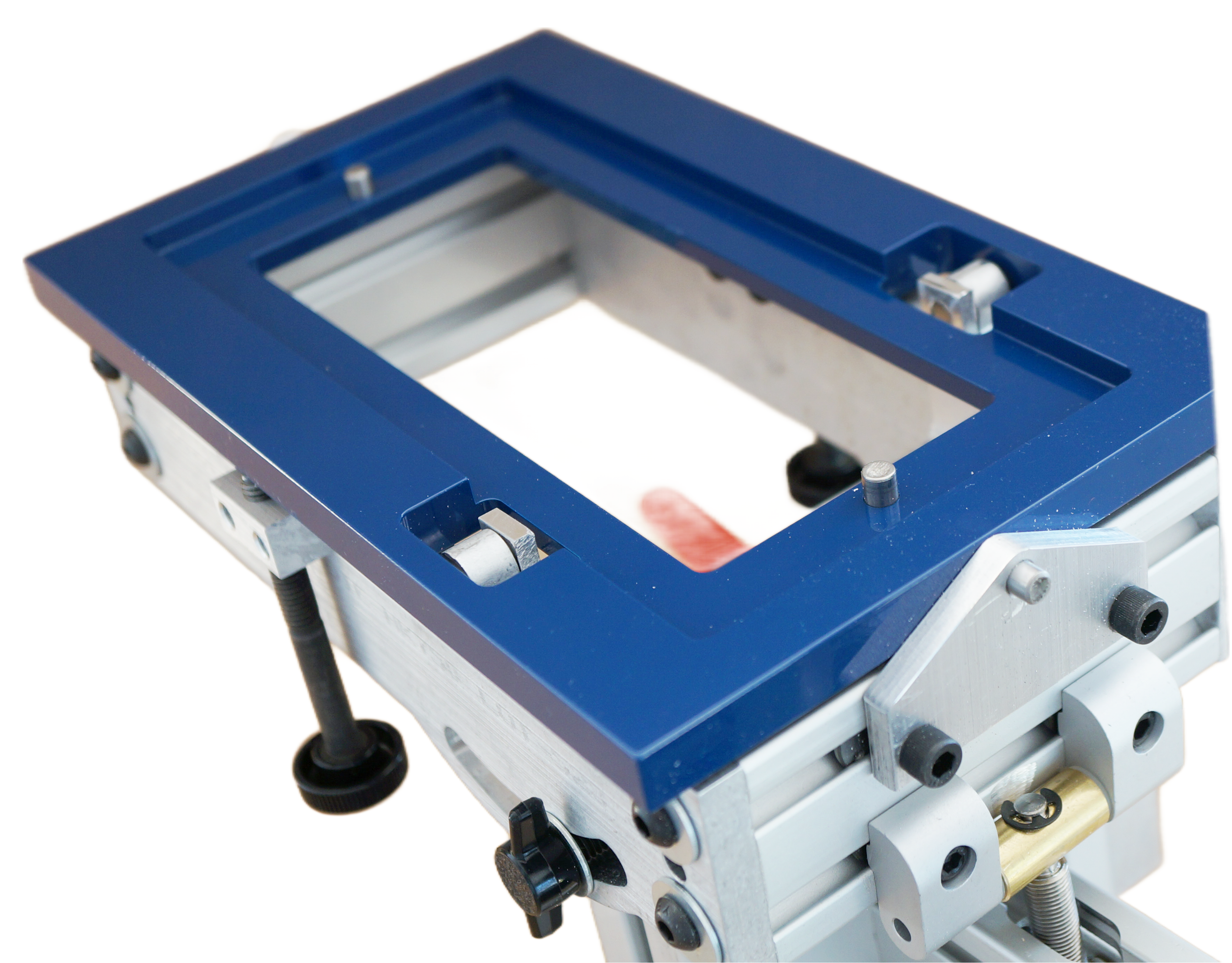

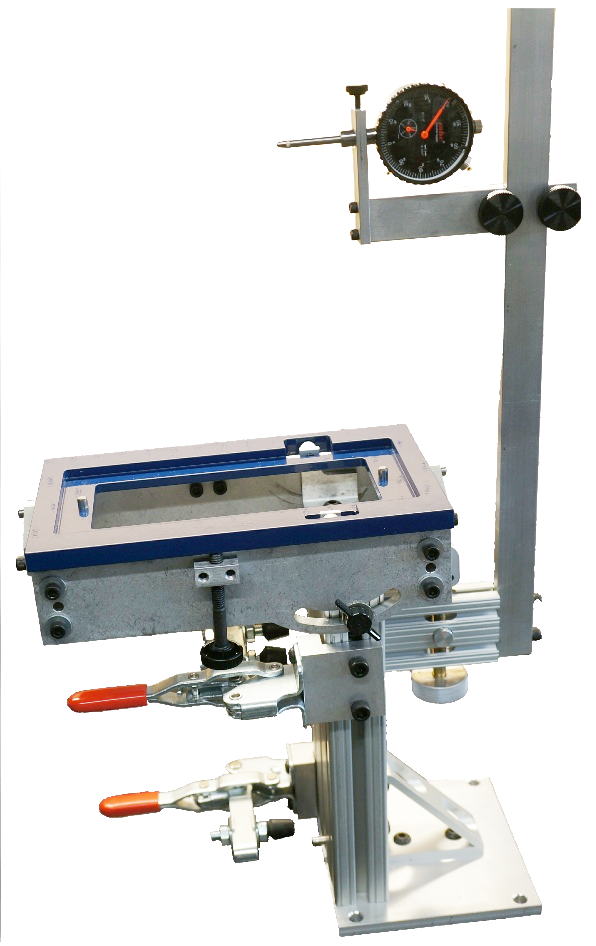

The Neck Angle Jig has become the industry standard in guitar building tools. Made from Aluminum this jig allows for precise neck alignment and control giving you a perfect neck joint.
The Edge vise is specifically designed to work with the jig, it also doubles as a end graft tool. The templates and accessories are sold separately
Most templates are designed for a 5/8 OD template guide. This fixture is to be used with a 1/2" collet router and a 7" diameter base . We recommend using a 1/2" spiral down cut bit for the Mortis and Tenon templates and a 7 degree Dove Tail bit with a 1/2" shank for the Dove Tail templates. Template guides and router bits are sold separately
Intro
neck angle jig
Alignment
USER MANUAL
NECK ANGLE JIG
This Jig has mutiple options
Base price starting at $829.00
OPTIONS

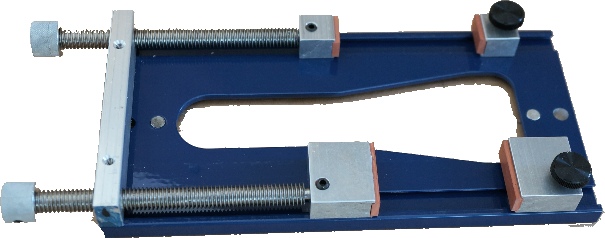

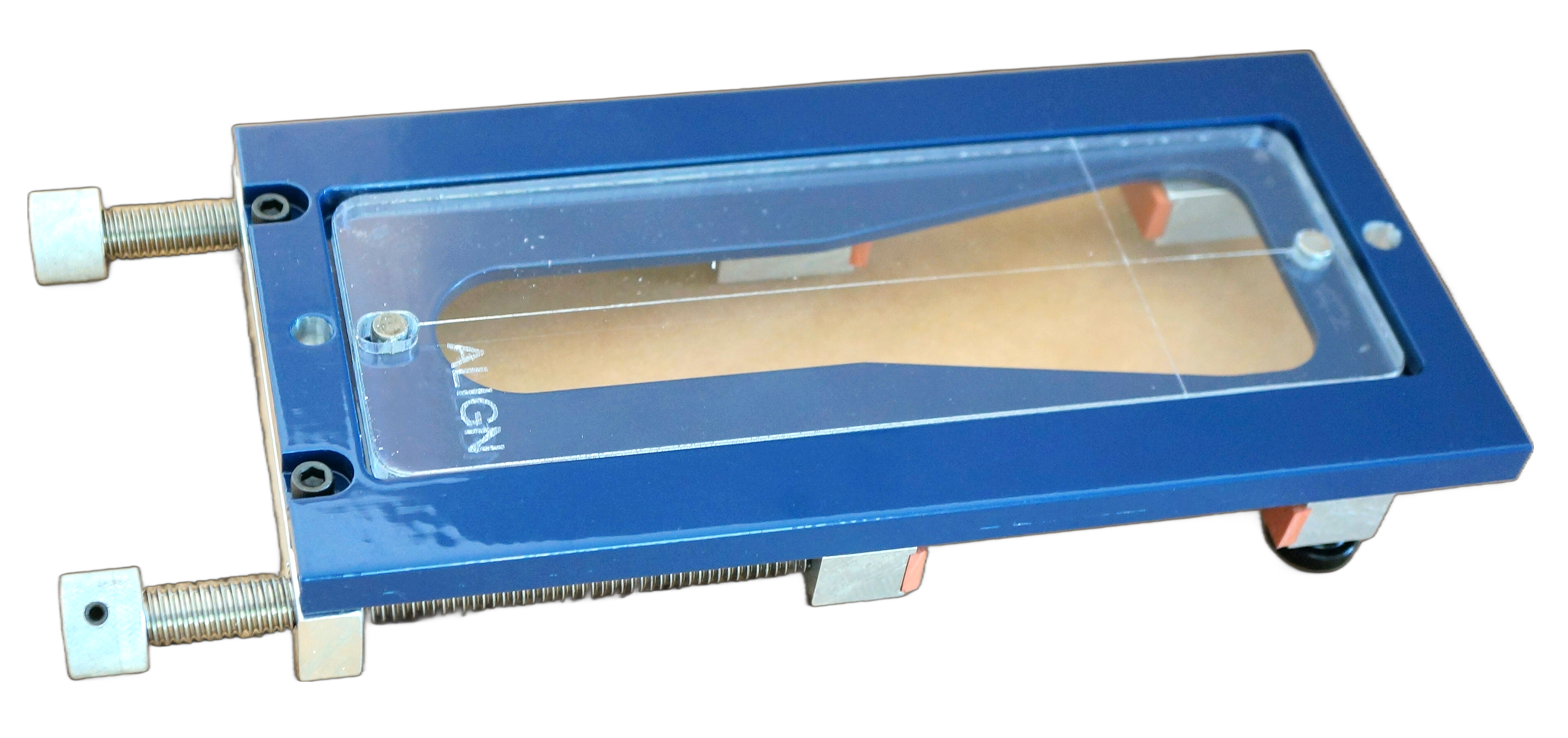

EDGE VISE
The Edge Vise is designed to clamp onto the guitar body edge so the the apropiate joint can be routed
EXTENDED DOGS
The Extended dogs are designed for Cutaway guitars to support the Edge Vise.

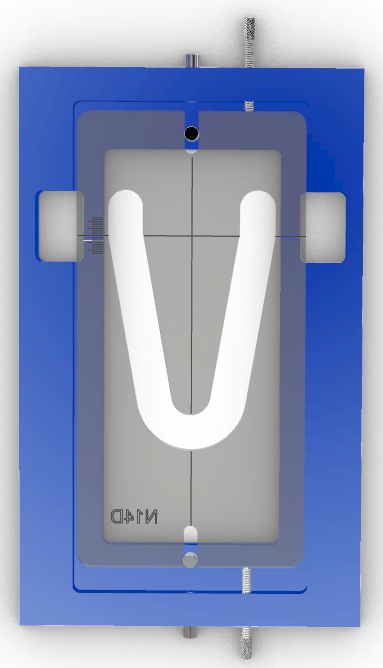

TOP PLATE MODIFICATION
This modification allows for Neck (mortise) template adjustment so that the dove tail jopint can be precisly fitted.
Templates sold seperatly
Edge Vise
This Edge Vise
$195.00
Extended dogs
Top Plate Modification for adjustable dove tail templates
This for top plate retrofit includes machinig plus screws. Send to:
Luthiertool Company LLC
1237G Gold Edge Mine Rd
Kettle Falls, WA. 99141
$79.95
Templates are sold seperatly.
See below
Digital Dial Indicator
This Dial Indicator will show measurment in both inches an millimeter.
$59.95
1/2" Spiral Downcut Bit
This bit has 1/2" shank and made from carbide
$74.95
Dove Tail Bit 7 degree
THis 7 degree Dove Tail Bit is 5/8" diameter and 1/2" shank
$29.95
5/8" template Guide
This template guide fits into the templates
$39.95

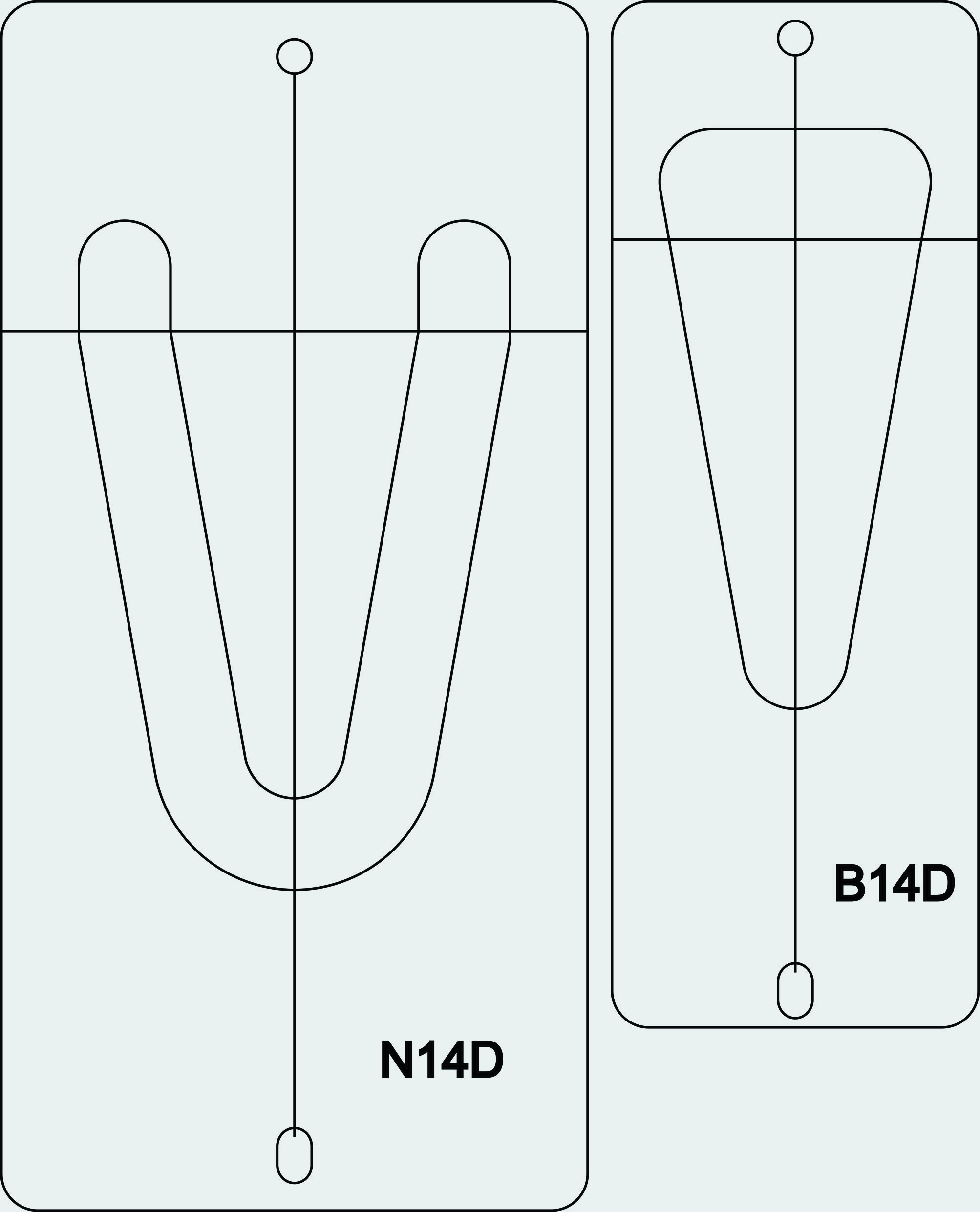

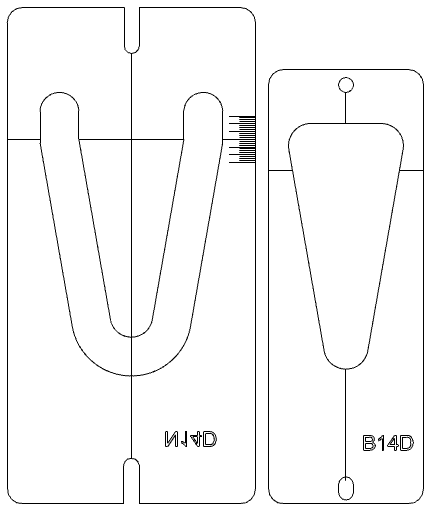

Dove Tail Template 14 Fret
2 templates body & neck
3 templates body, neck & cleanout
$49.95 template set
$69.95 plus cleanout
More

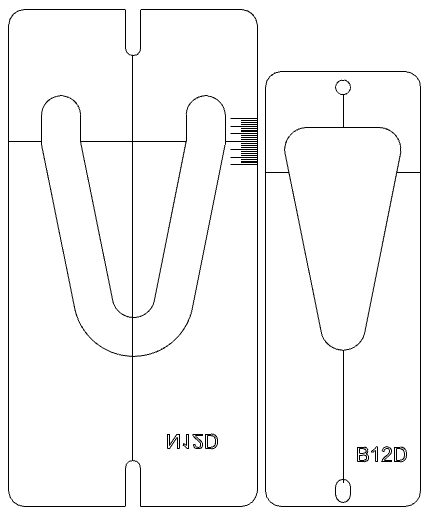

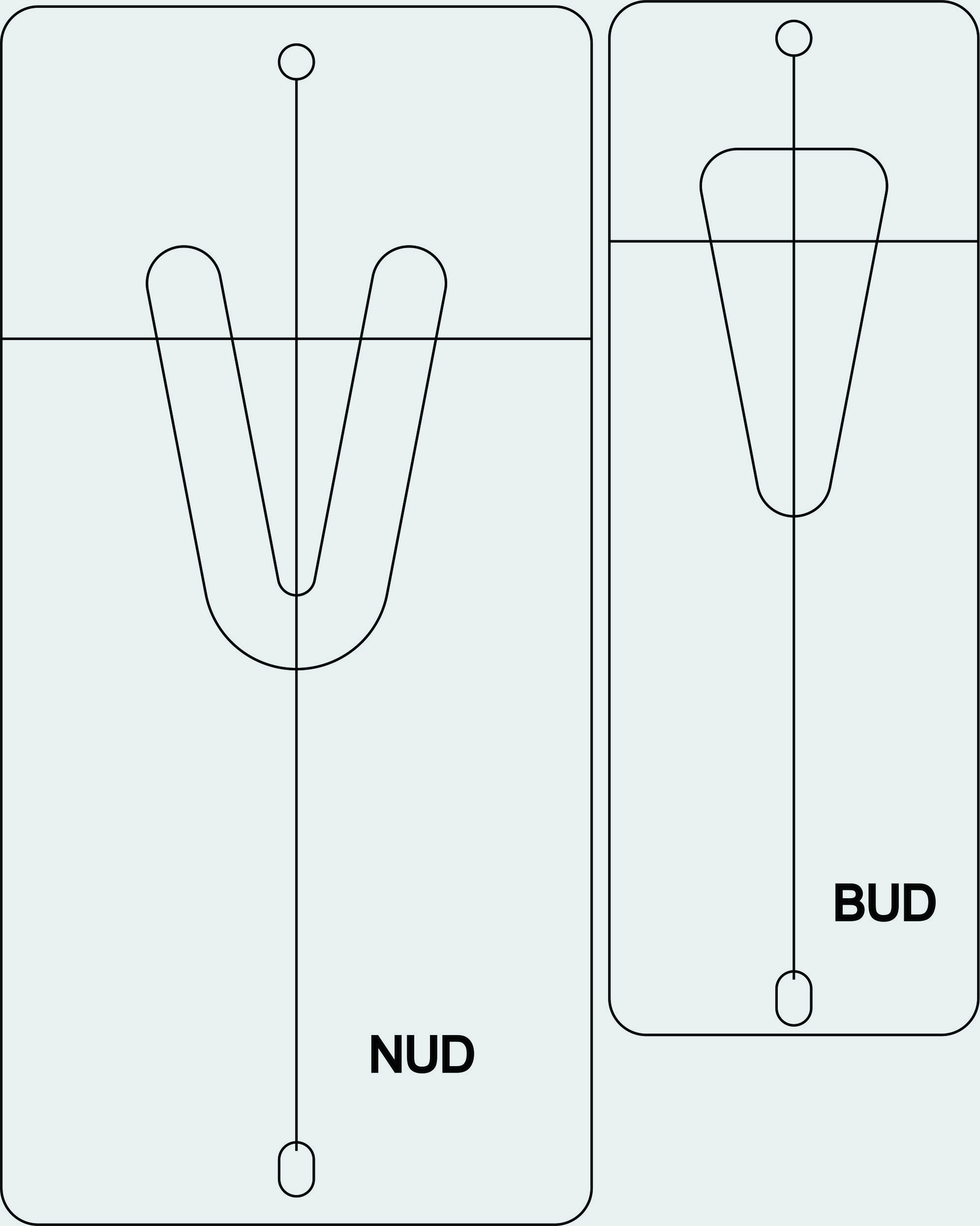

Dove Tail Template 12 Fret
2 templates body & neck
3 templates body, neck & cleanout
$49.95 template set
$69.95 plus cleanout
More
Dove Tail Template Ukulele
2 templates body & neck
3 templates body, neck & cleanout
$49.95 template set
$69.95 plus cleanout
More
Custom Template Set
Please email ck@luthiertool.com for template spec's. Need length, width and/or angle
$79.95

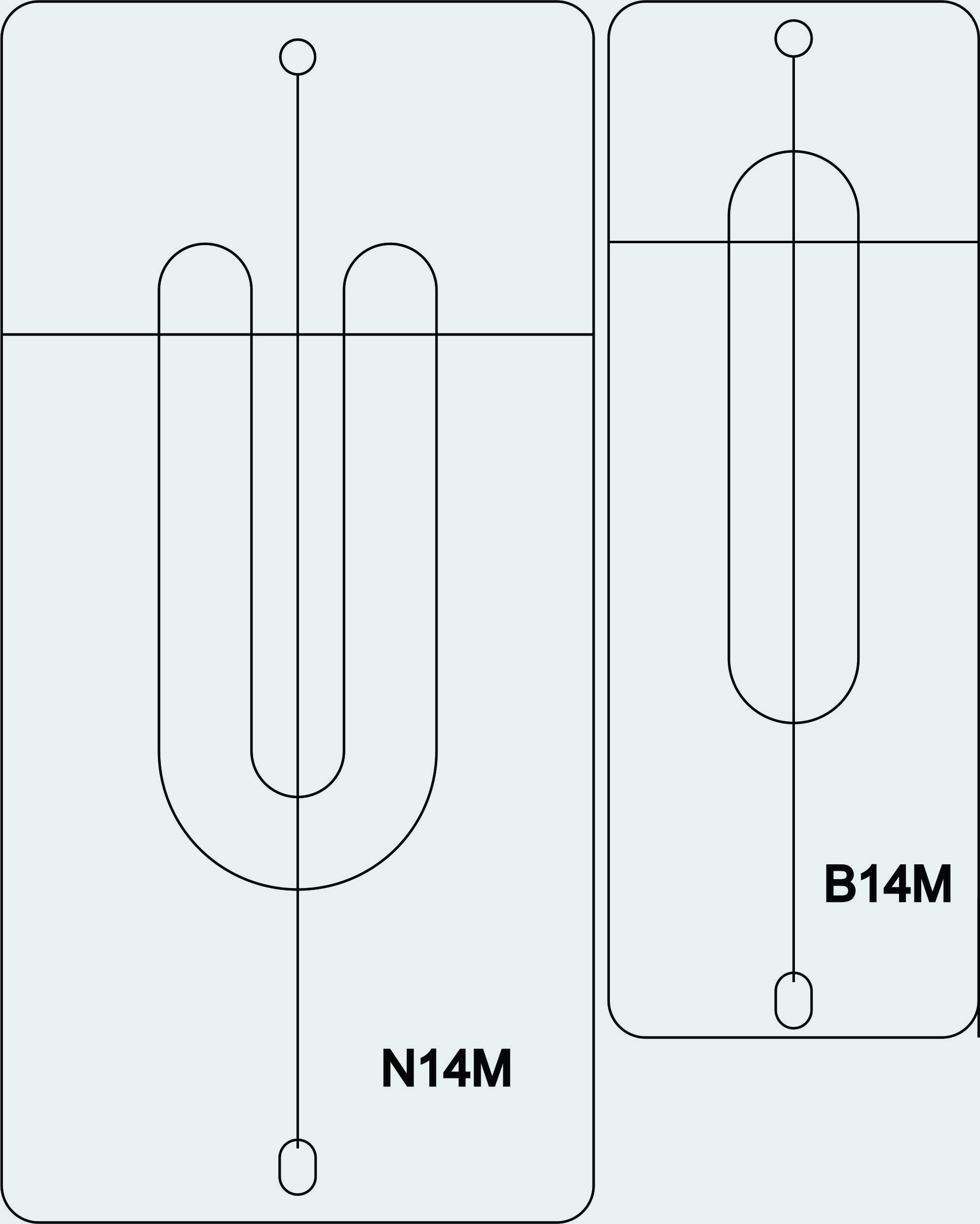

Mortis and Tenon Template 14 Fret
2 templates body & neck
3 templates body, neck & cleanout
$49.95 template set
$69.95 pluse cleanout
More

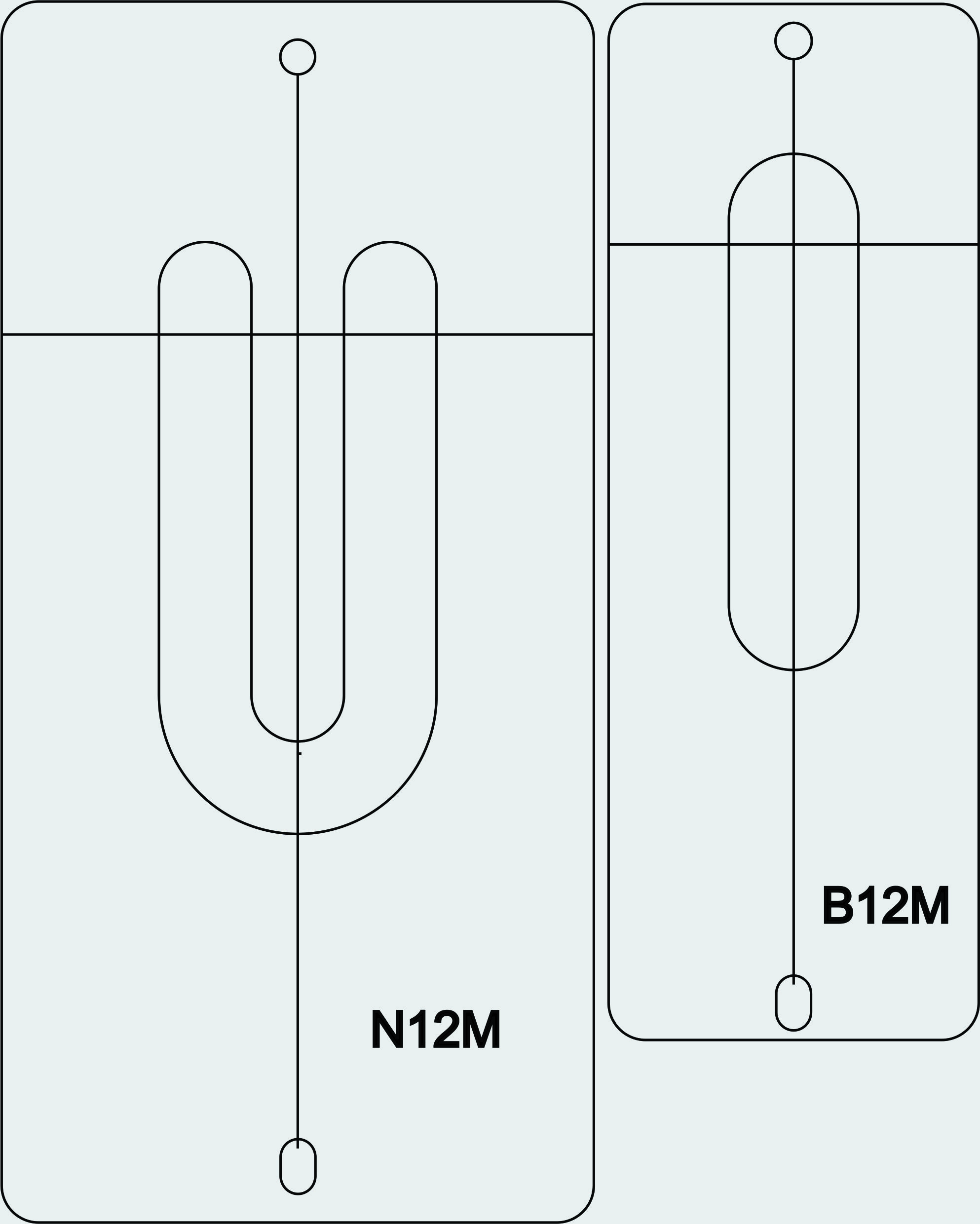

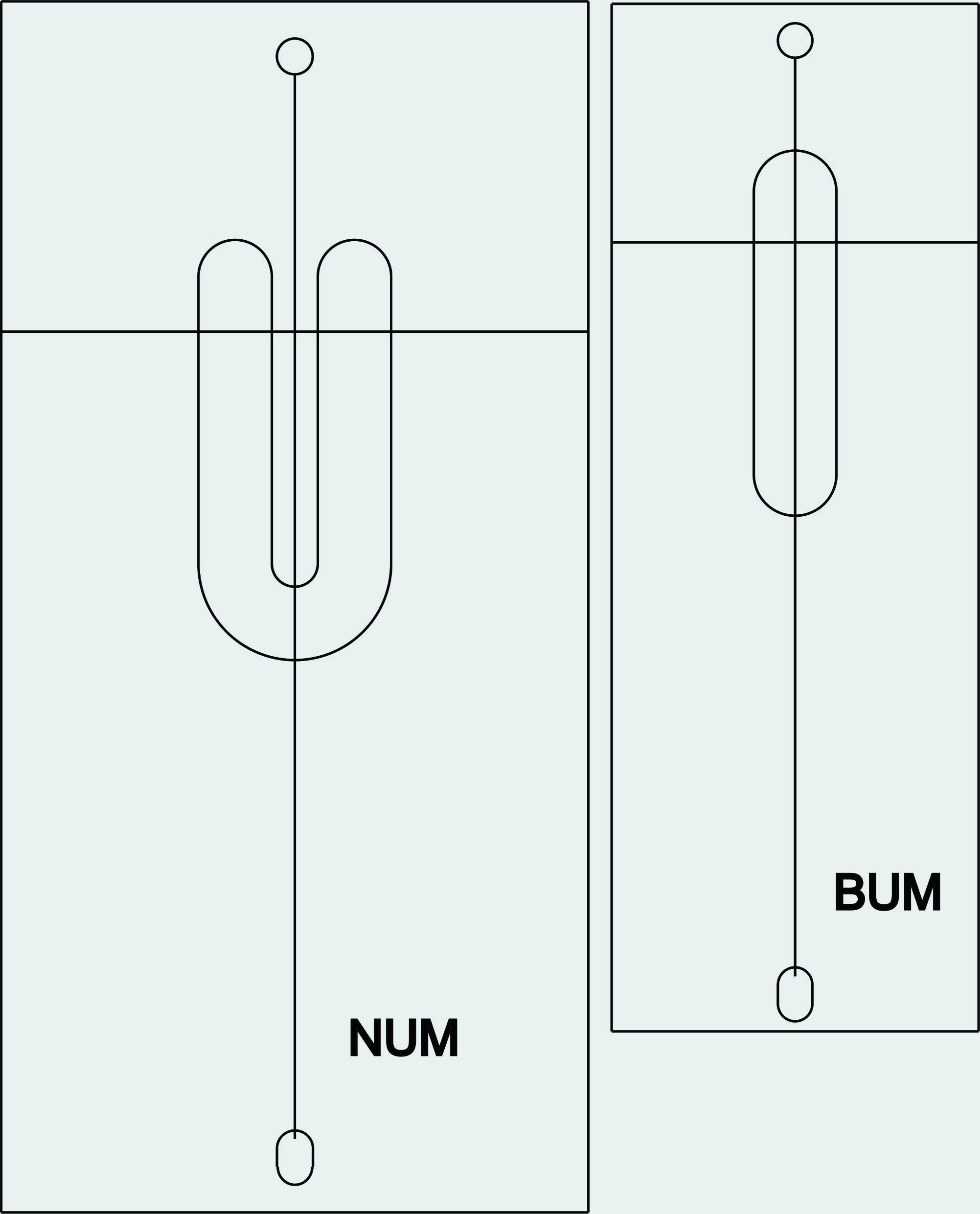

Mortis and Tenon Template 12 Fret
2 templates body & neck
3 templates body, neck & cleanout
$49.95 templates set
$69.95 pluse cleanout
More
Mortis and Tenon Template Ukulele
2 templates body & neck
3 templates body, neck & cleanout
$49.95 template set
$69.95 pluse cleanout
More

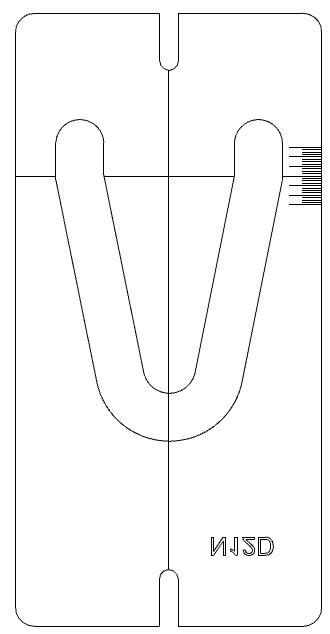

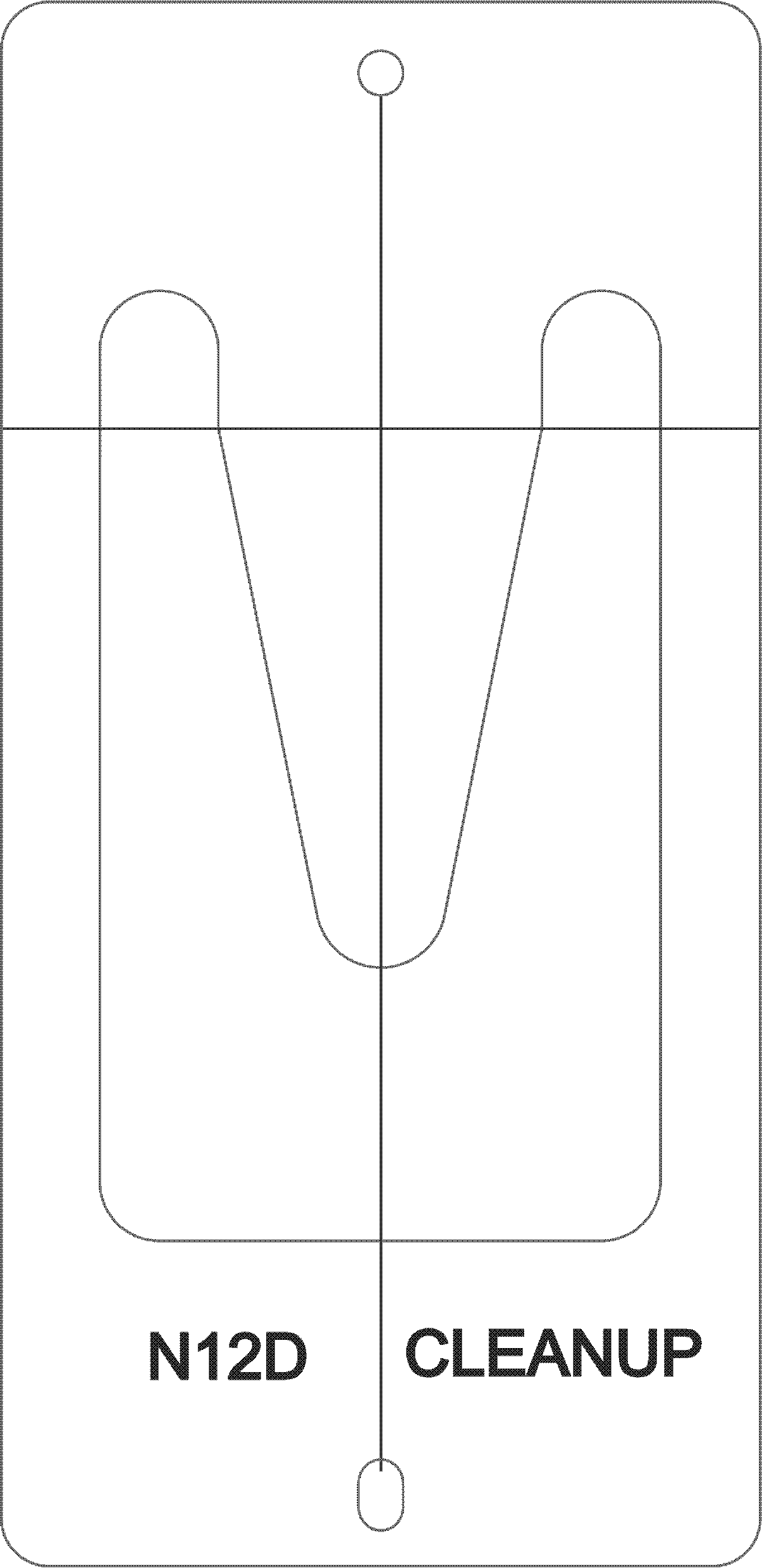

N12D cleanout
cleanout template for N12D
use 3/8 bit
$29.00

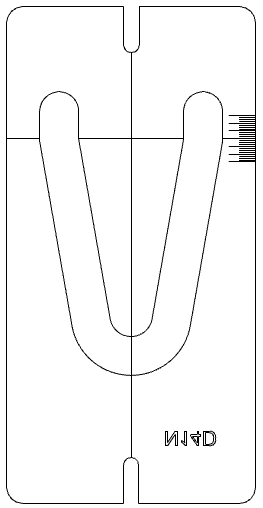

N14D cleanout
cleanout template for N14D
use 3/8 bit
$29.00

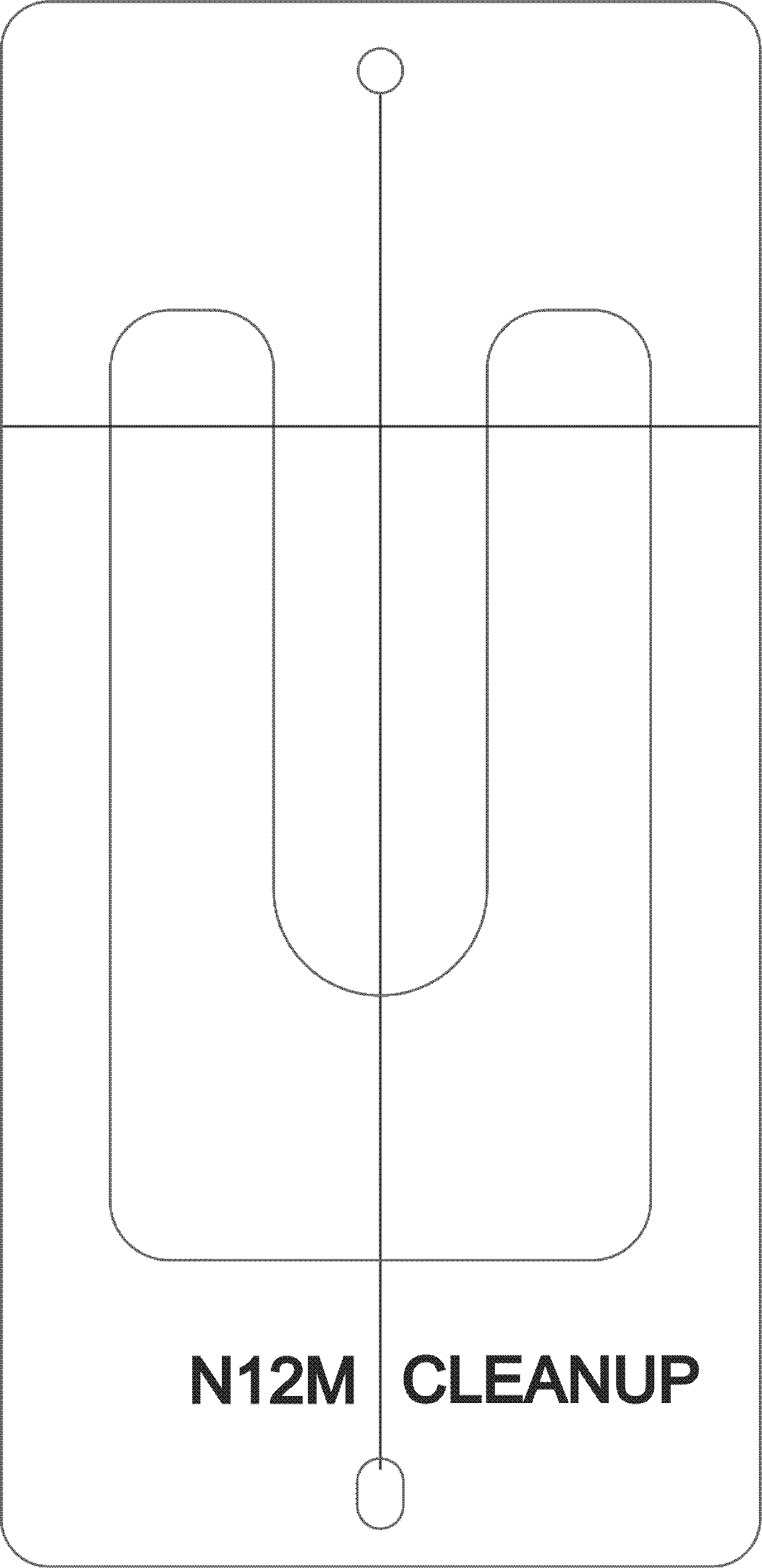

N12M cleanout
cleanout template for N12M
use 3/8 bit
$29.00

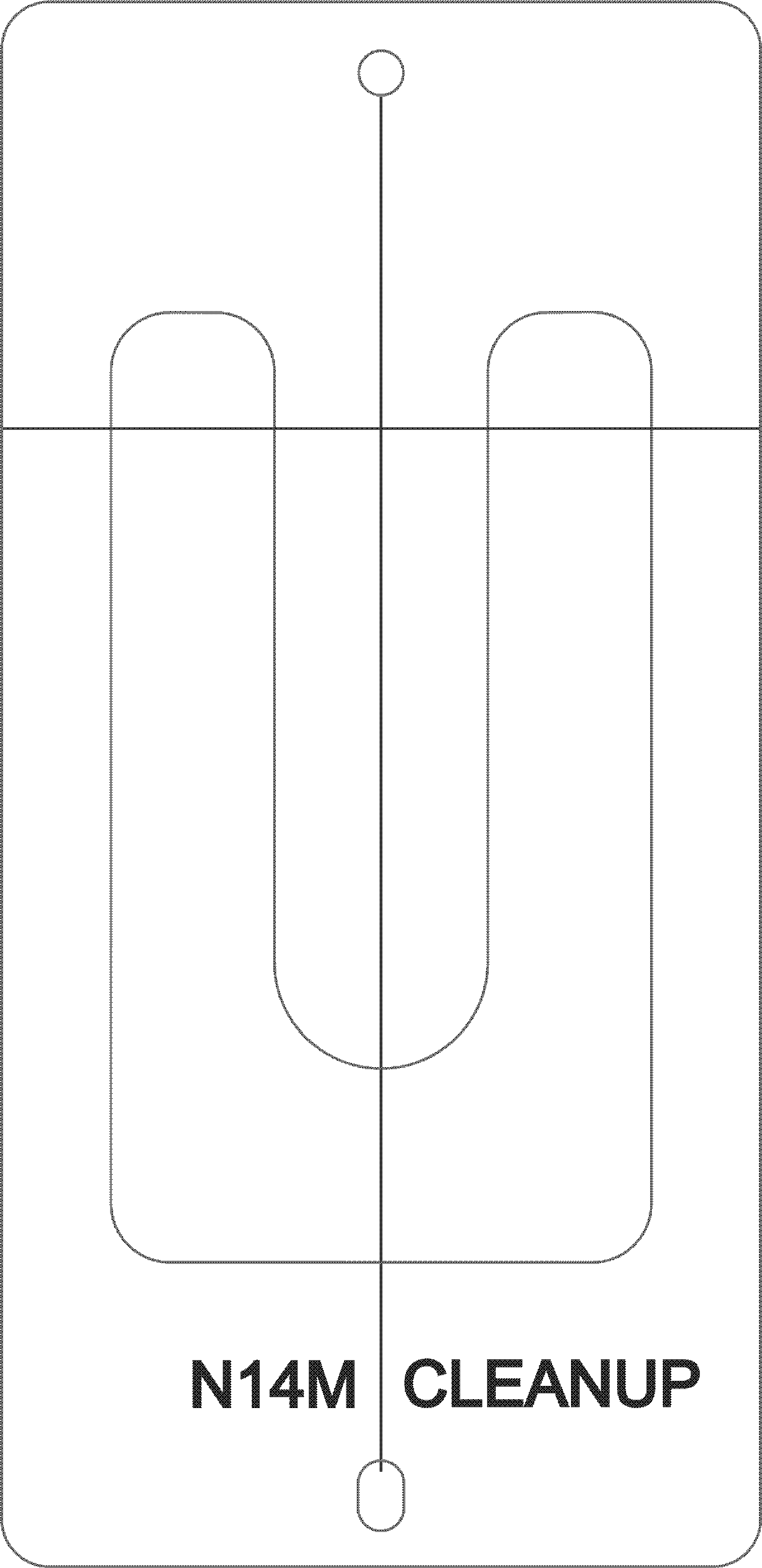

N14M cleanout
cleanout template for N14M
use 3/8 bit
$29.00
UKE DT cleanout
cleanout template for UKE DT
use 3/8 bit
$29.00
UKE MT cleanout
cleanout template for UKE MT
use 3/8 bit
$29.00
Martin Template
This template is made from acrylic
$29.00

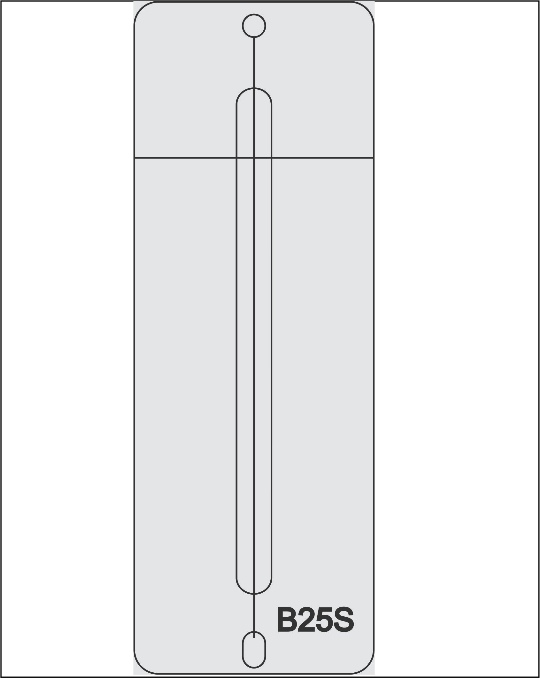

Straight Template
this template is made from acrylic
$29.00
12 fret Dove Tail adjustable
this template is made for use with the top plate modification
$29.00
14 fret Dove Tail adjustable
this template is made for use with the top plate modification
$29.00
12 fret adjustable dove tail set
this template is made for use with the top plate modification
$49.95
14 fret adjustable dove tail set
this template is made for use with the top plate modification
$49.95
Extended Dogs
These dogs are designed for cutaway guitars
$39.95

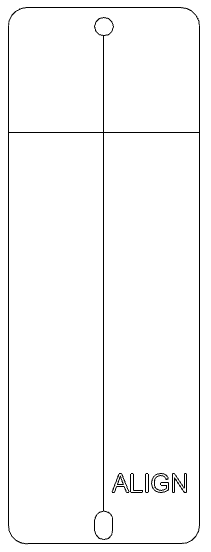

Alignment template
this template is made from acrylic
$19.95
