MINI PICKUP WINDER

0

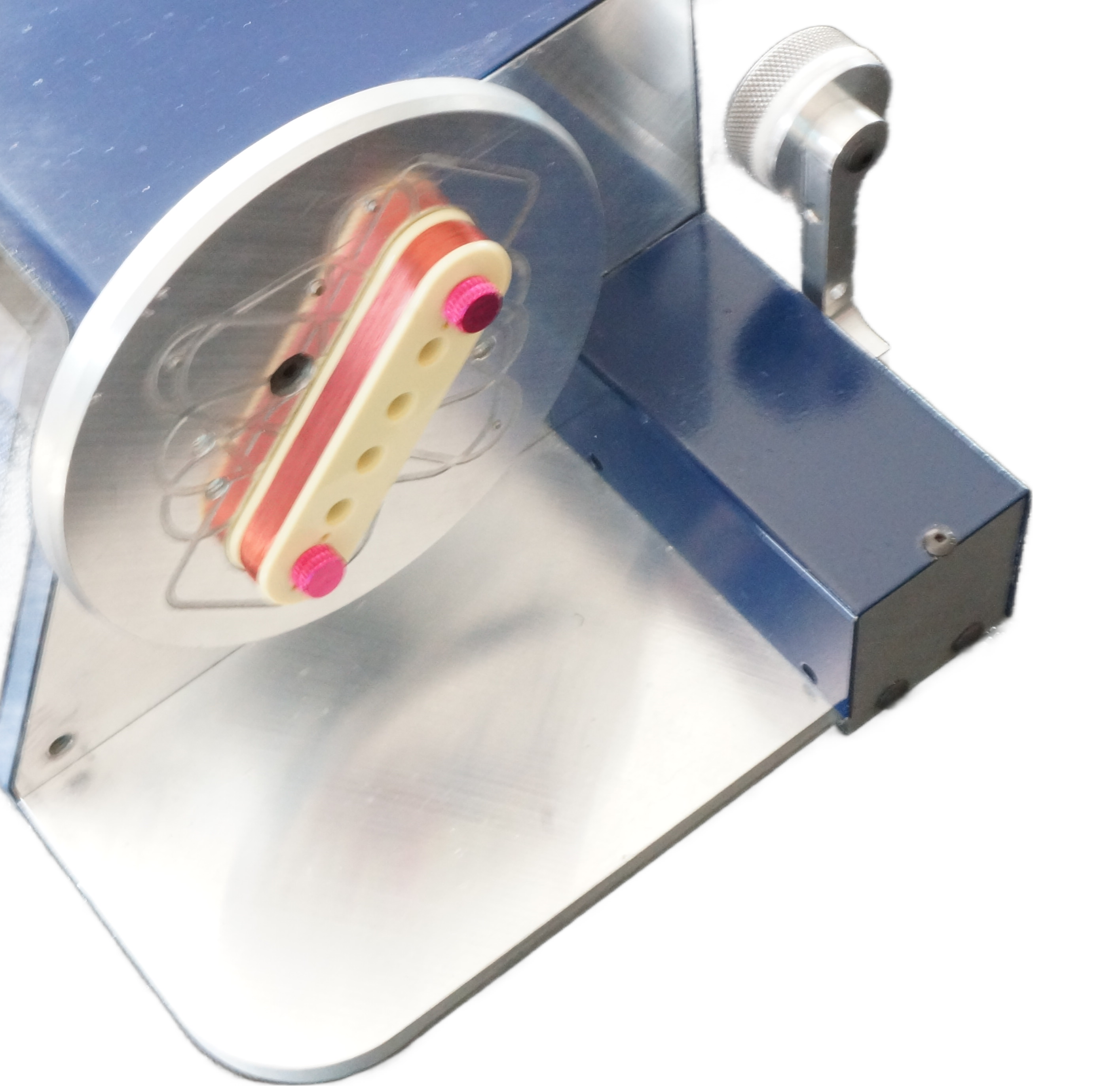

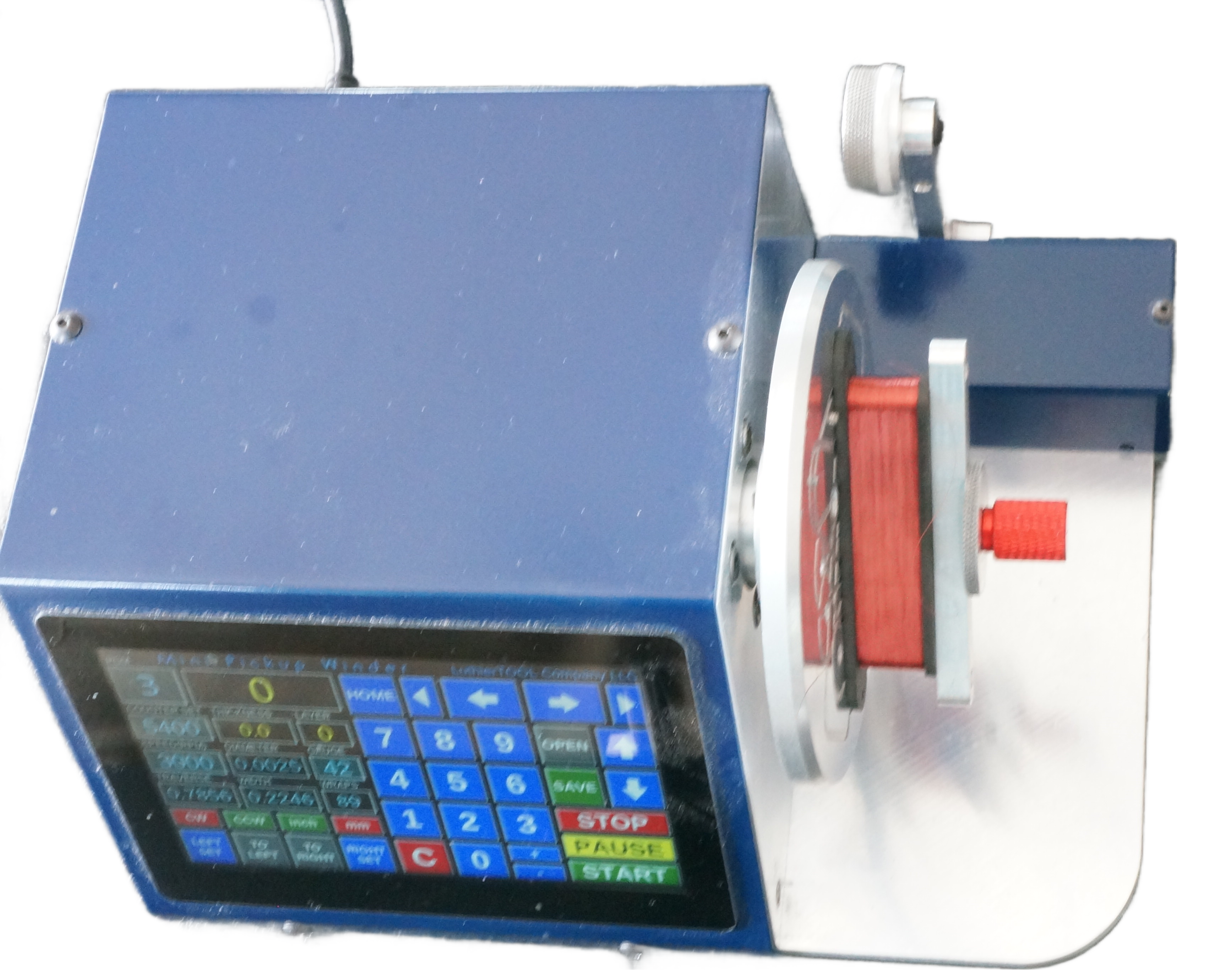

Mini Pickup Winder
$1495.00
The Mini Pickup Winder has a small footprint that will fit on any bench or desktop. Base on a Raspberry Pi technology platform this  machine run on Lunix operating system. All the winding functions are included to wind a perfect pickup.
USER MANUAL            WINDER VIDEO

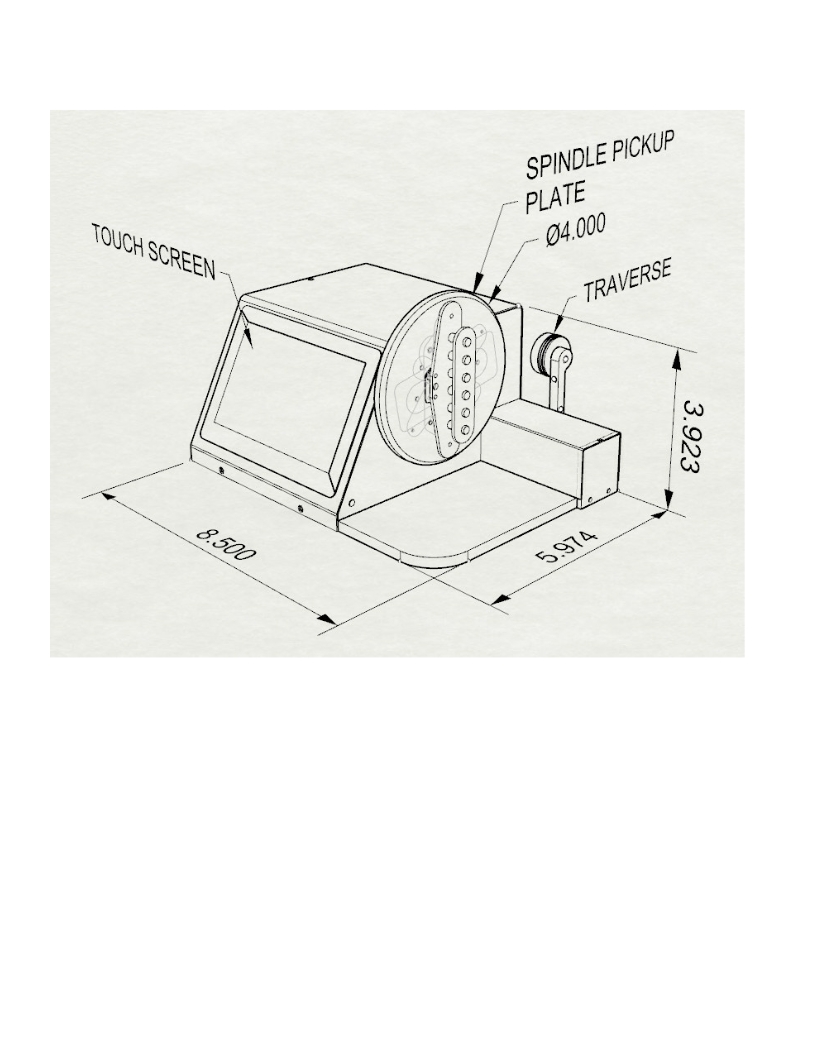

Dimensions:

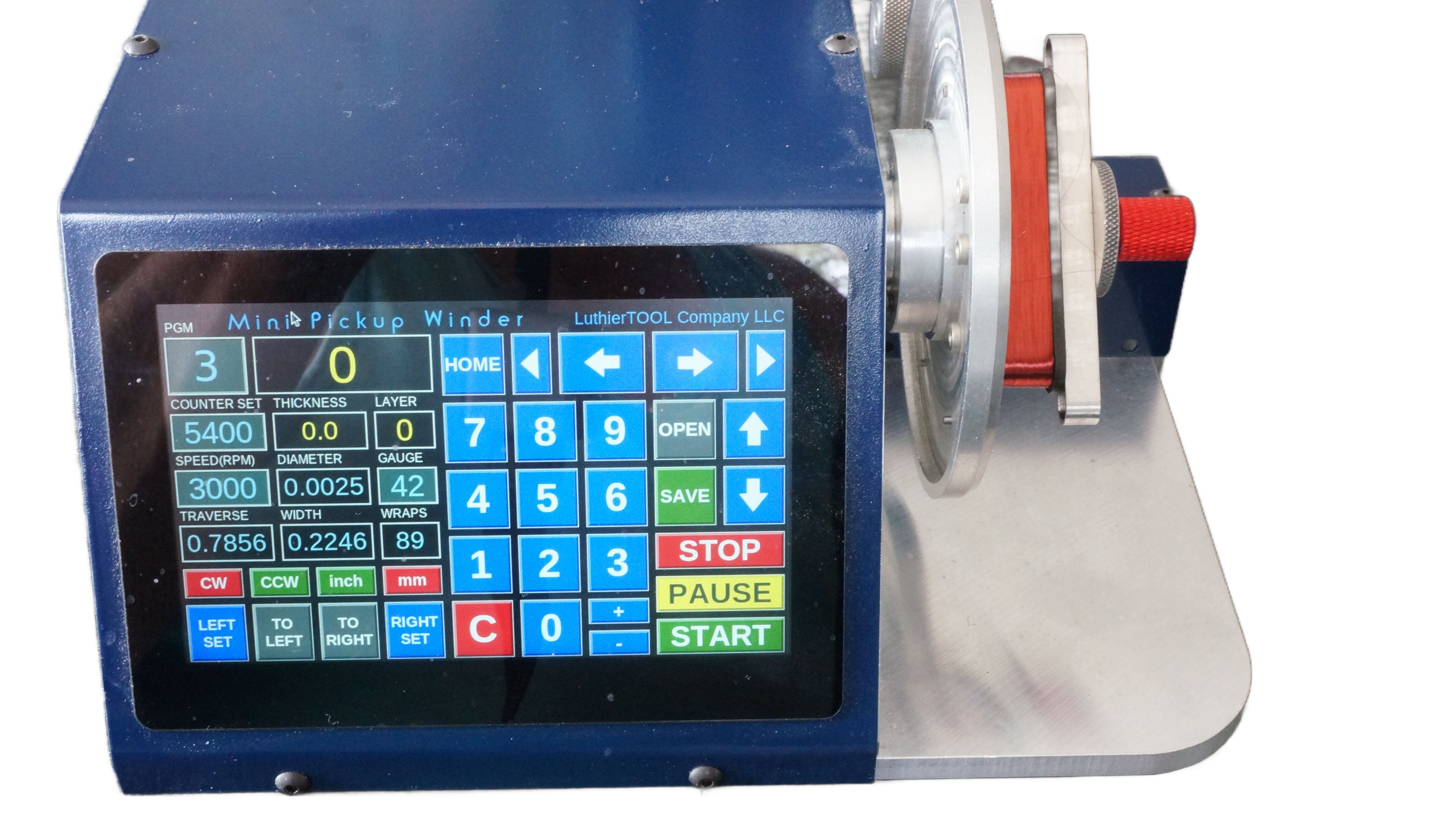

Specification:
Speed: 350 to 3000 RPM
Turns: 1 to 99999 count
Wire GA: 40 to 46
Travese set: Left and Right
Spindle Dir: CW or CCW
Unit of measure: Inches or mm
Pgm(settings): 1 to 999
Layer indication
Coil thickness indication
Wire gauge diameter indication
Between flatwork width indication
Number of Wraps
Full key pad function
Start, Stop, Pause function
and more

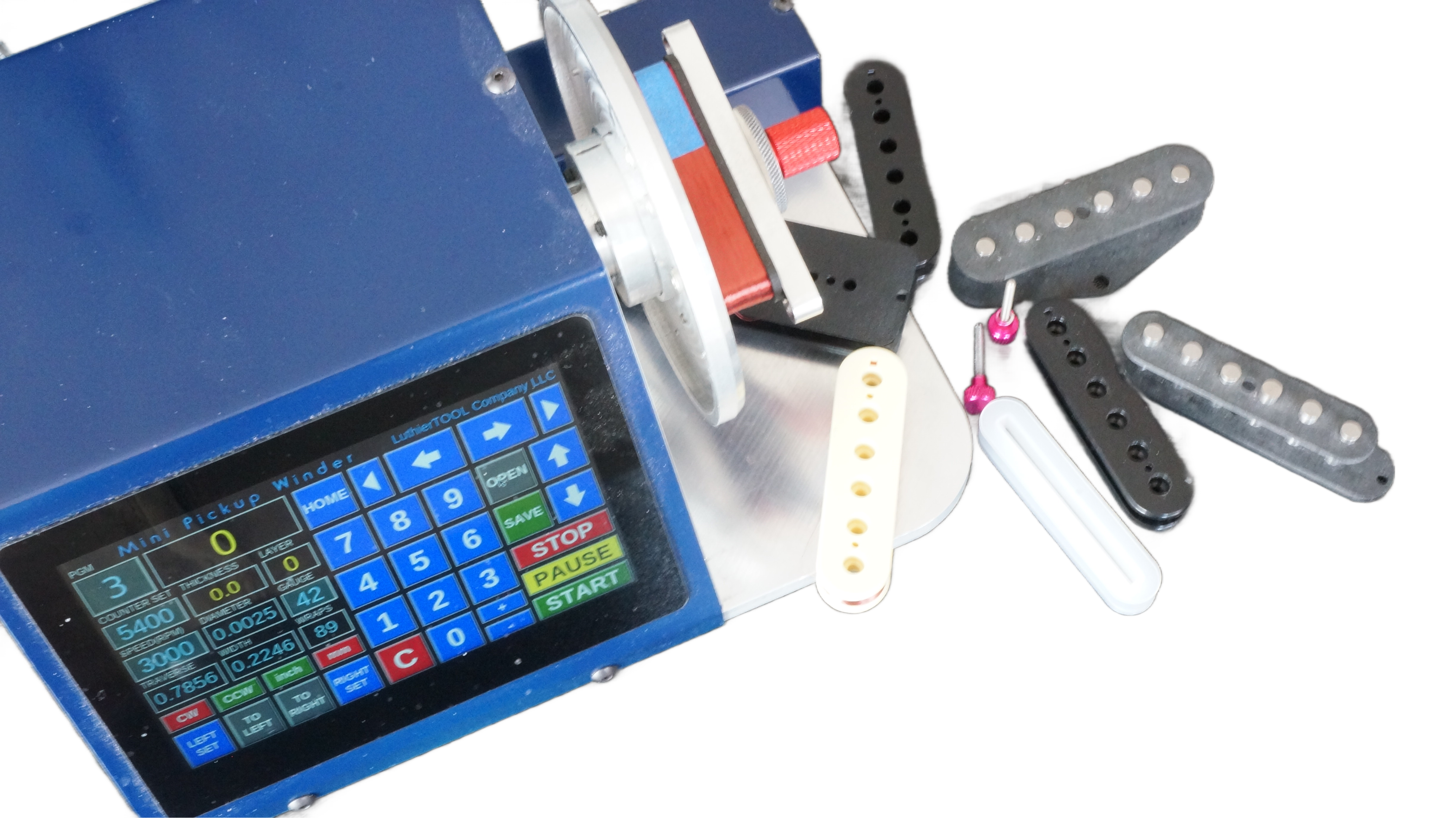

Recommended Pickup Bobbins:
Humbucker
Blade
P90
Tele bridge
Tele neck
Strat
Mini humbucker
and others

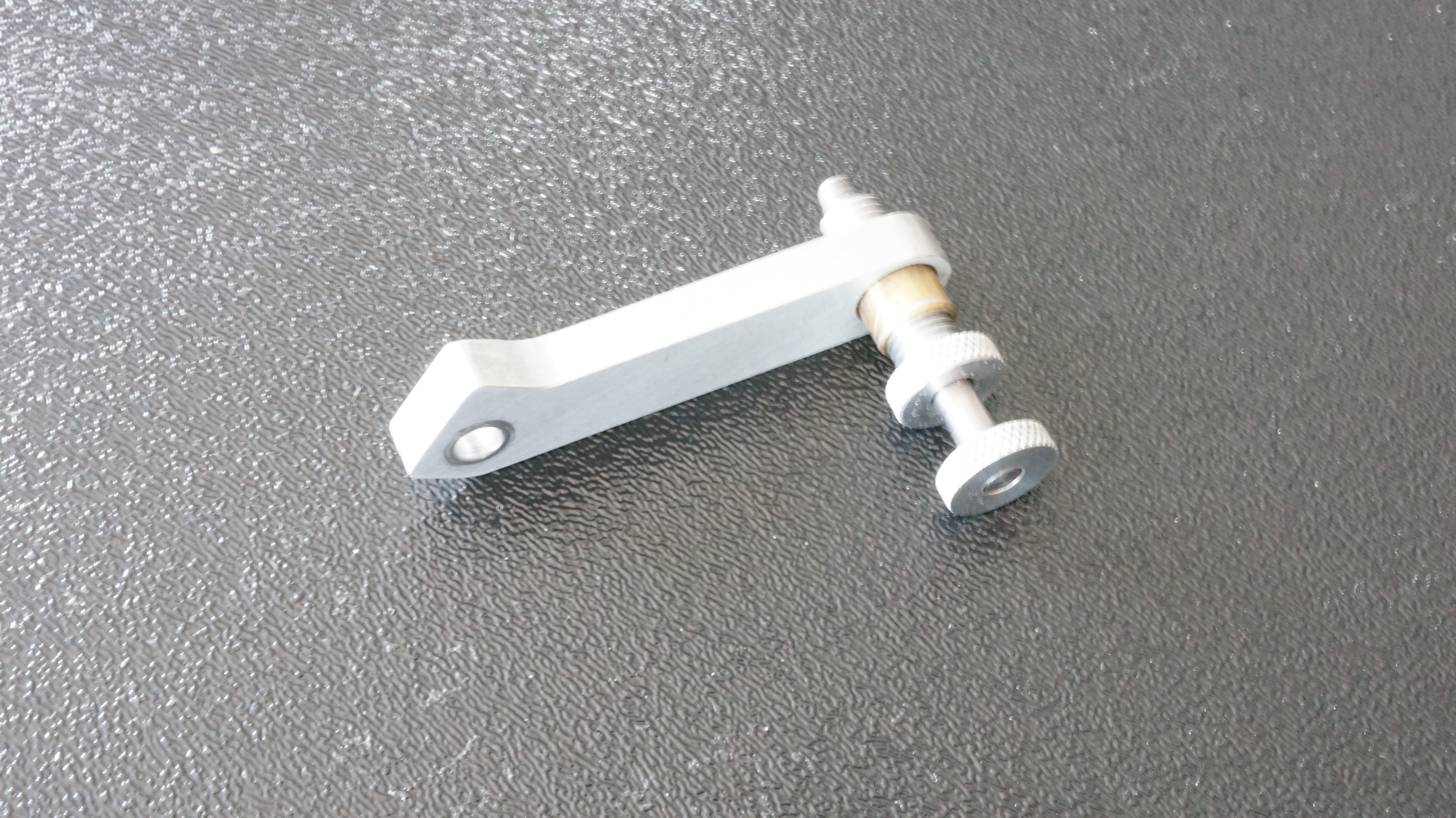

Manual wind arm
This arm is designed so that you can place a spool in front of the machine and hand wind your bobbin
$79.95

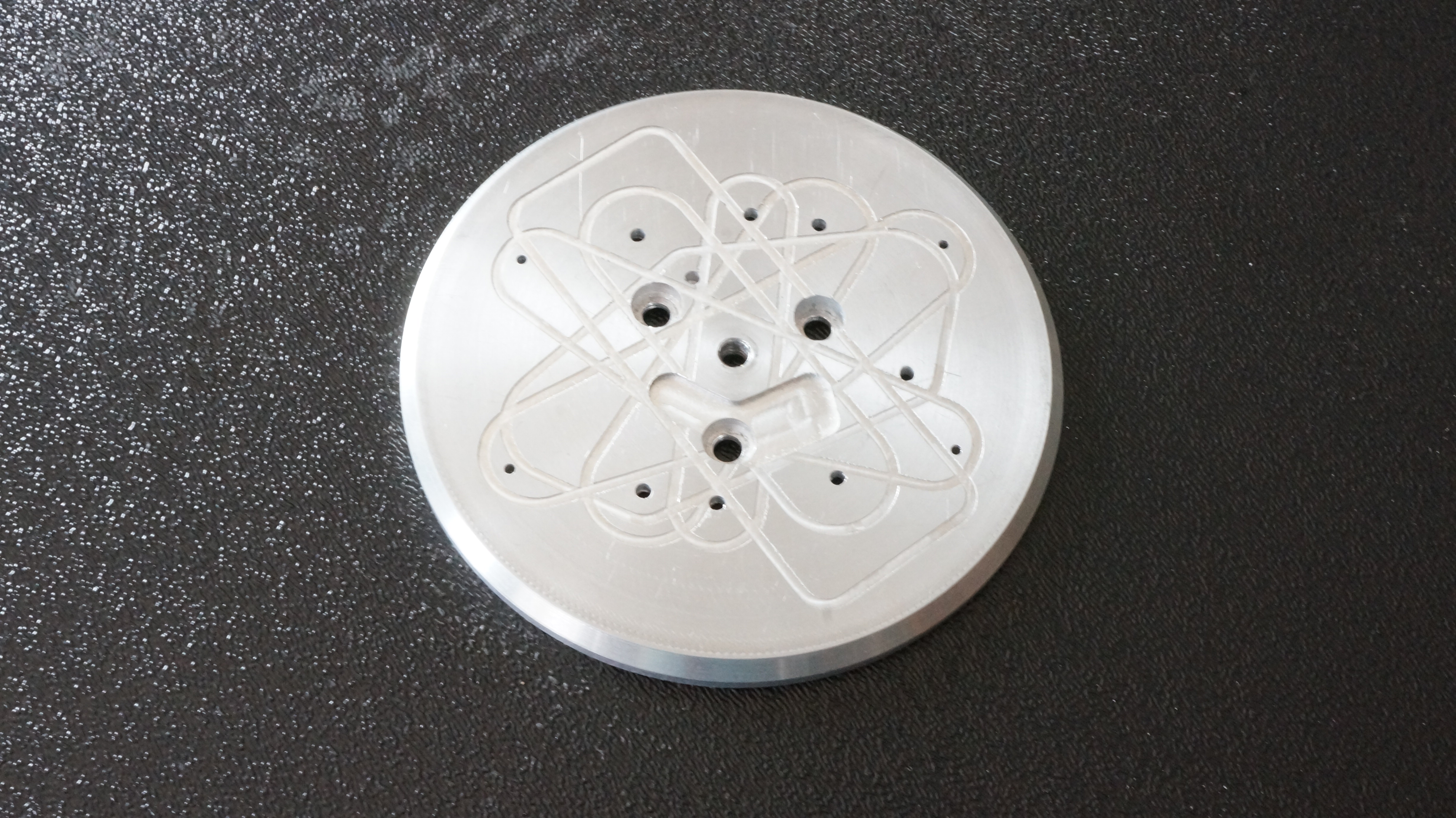

Guitar Bobbin Spindle Plate
This plate has multi bobbin outlines for guitars and is machine for minimal run out
$149.95

Bass Bobbin Spindle Plate
This plate has multi bobbin outlines for bass and is machine for minimal run out
$149.95

Felt Washer
Replacement pair of felt washers for the traverse
$1.95

Humbucker Thumb Knobs
Replacement thumb knobs for humbucker bobbins
$19.95

Single Coil Thumb Knob
Replacement thumb knob for single coil bobbins
29.95

Support Bar
Replacement support bar for single coil bobbins
39.95
