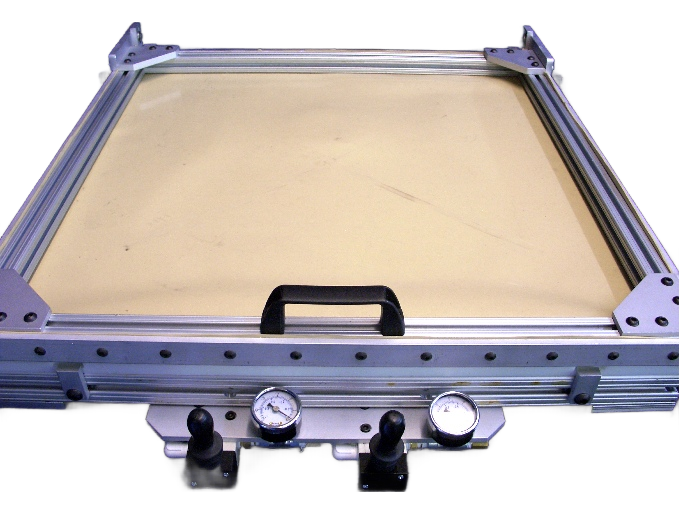

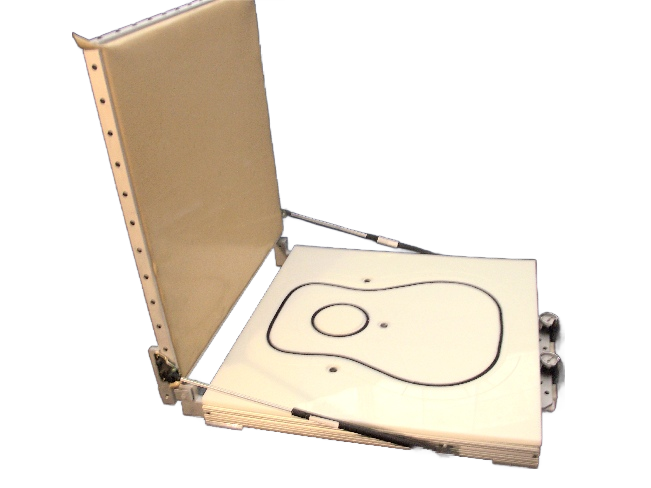

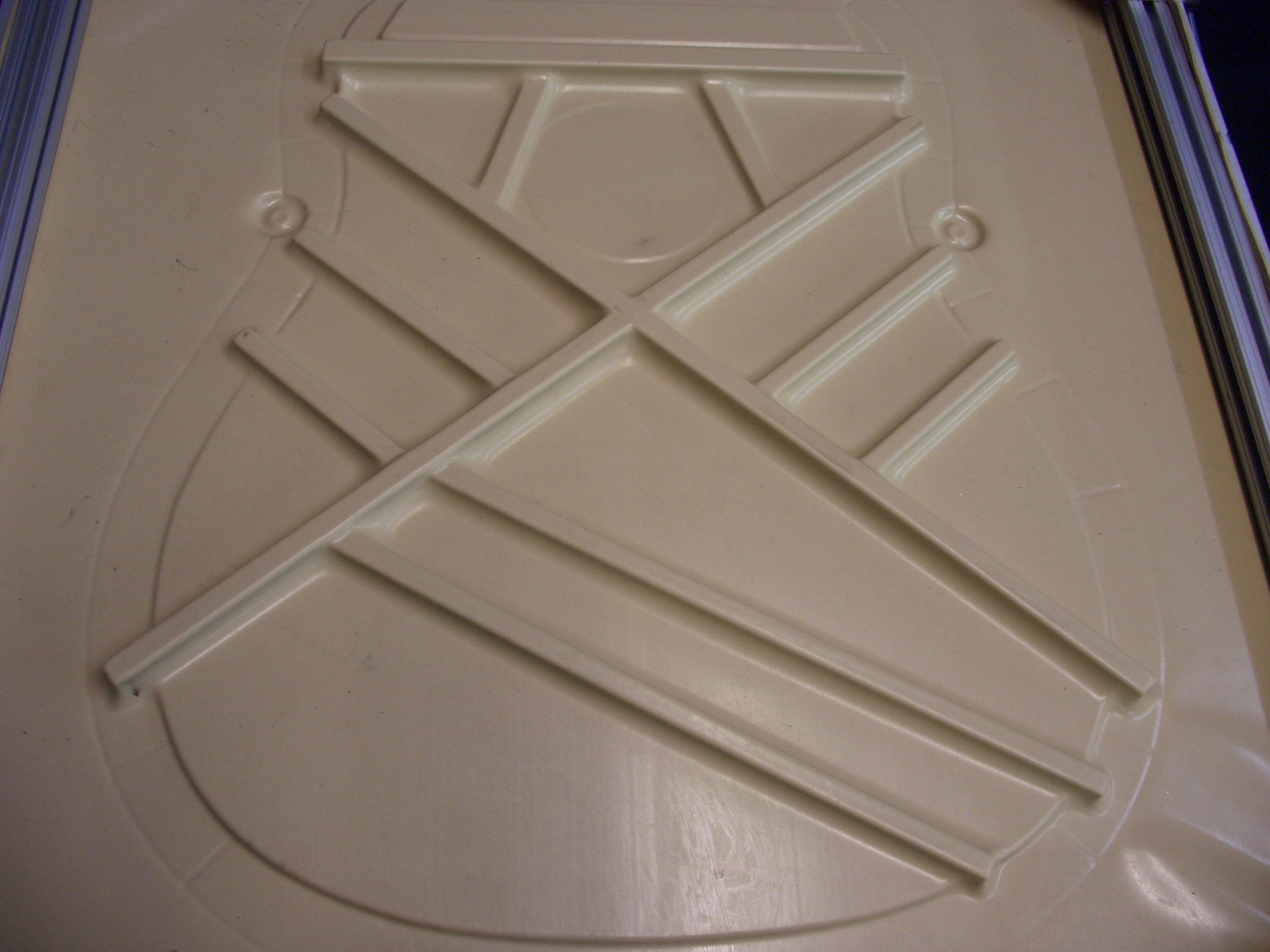

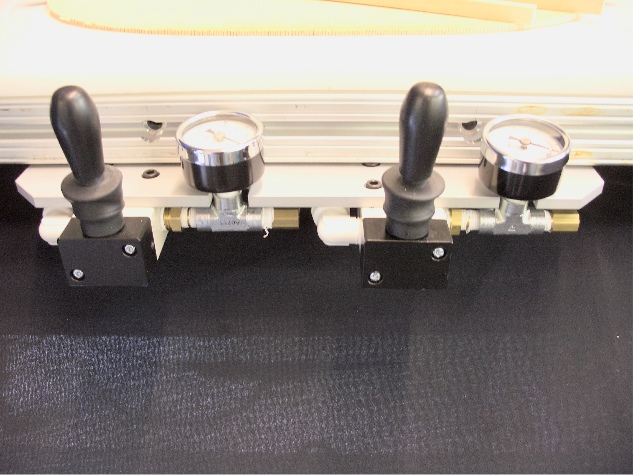

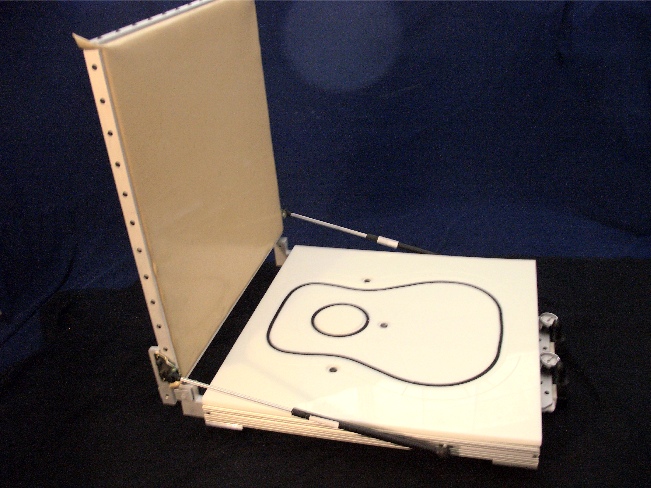

This is one of those tools that you see other Luthiers have in their shop but can't find them commercially available. The time has come for this tool. This Vacuum Press is designed to hold inserts for various guitar shapes, with different plate radii. This press has two Vacuum valves, the first one is for plate vacuum so that the top or back form to the correct radius and the second valve is for the rubber membrane so that the bracing does not move during the press cycle and provides balanced clamping force over the entire bracing system. For a complete work station you will only need two inserts one for the back and one for the top plate. The inserts are designed for multiple body sizes up to a Jumbo giving you a complete solution for your guitar bracing needs. In most cases two inserts are required one for the top and one for the back, these are sold separately. An external vacuum pump is required with a minimum of 10 CFM.
Vacuum Press Video

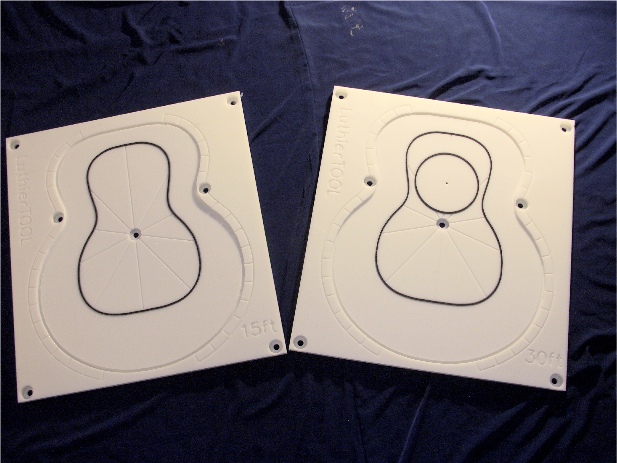

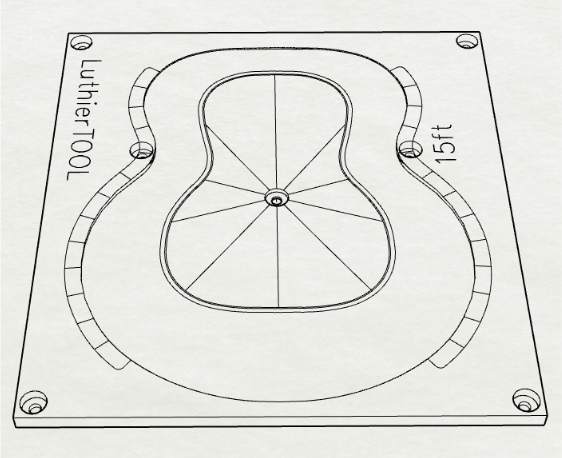

Insert 15 Feet
22" x 24" x 3/4" HTPE plate
$179.95

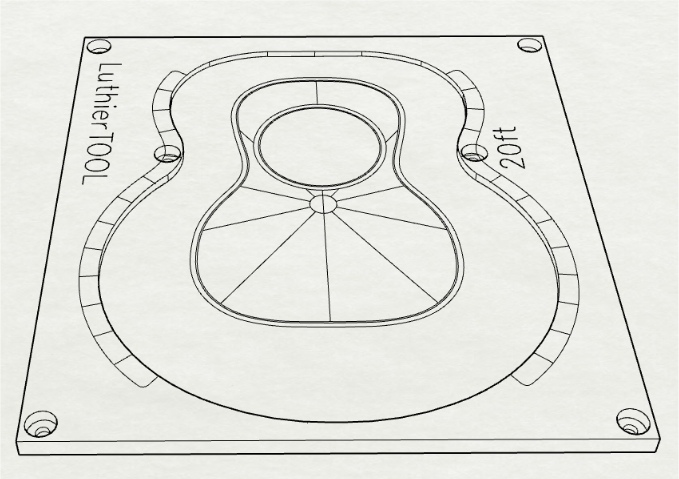

Insert 20 Feet
22" x 24" x 3/4" HTPE plate
$179.95

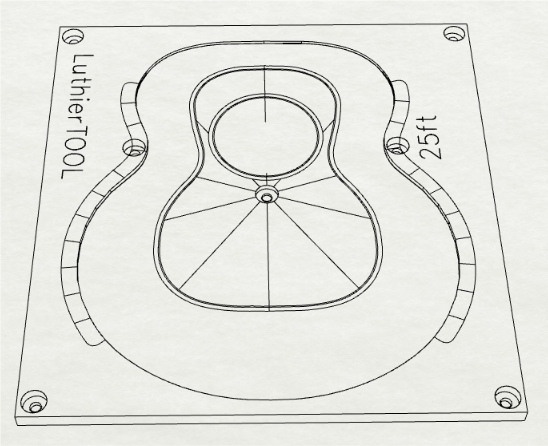

Insert 25 Feet
22" x 24" x 3/4" HTPE plate
$179.95

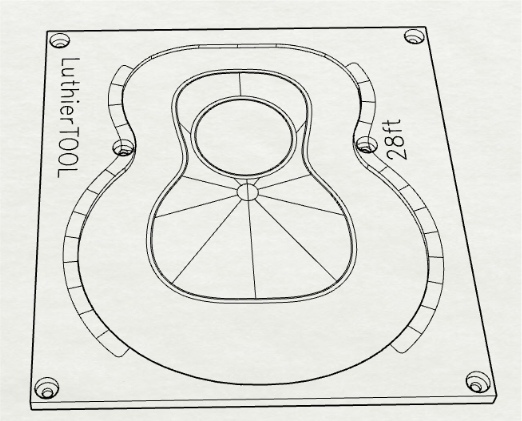

Insert 28 Feet
22" x 24" x 3/4" HTPE plate
$179.95

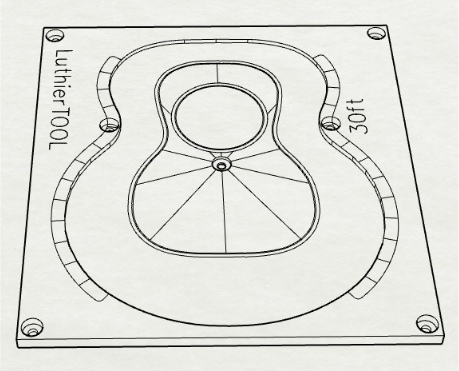

Insert 30 Feet
22" x 24" x 3/4" HTPE plate
$179.95

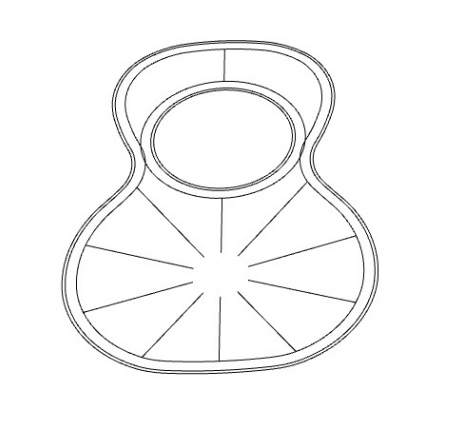

added uke pattern
pattern is cut within the guitar patern
$49.95
Vacuum Hose
10 feet vacuum hose
$139.95
Custom Insert (top or Bottom)
Custom insert 0 feet to 12 feet, Plate size 22" x 24" x 3/4" HTPE
