This self aligning binding cutter is designed for a vertical platform, in a form of an articulated arm, a carriage that move vertically or a platform that holds this cutter head vertical to the top or back of the guitar. The biggest feature is that you now cut a binding channel with a spiral down cut bit which gives you a perfect accurate rabbet for your bindings. We still reference on the side of the guitar body with a single guide bearing and can move the housing in or out exposing more of the bit. The key to this innovative design is that the mechanism self aligns to the arc of the guitar body always keeping it perpendicular with sight pressure to the guide bearing. The cutter is attached on a template guide so that it can be mounted on a typical router plate.
Binding Cutting Video
Tutorial Binding Cutting Video

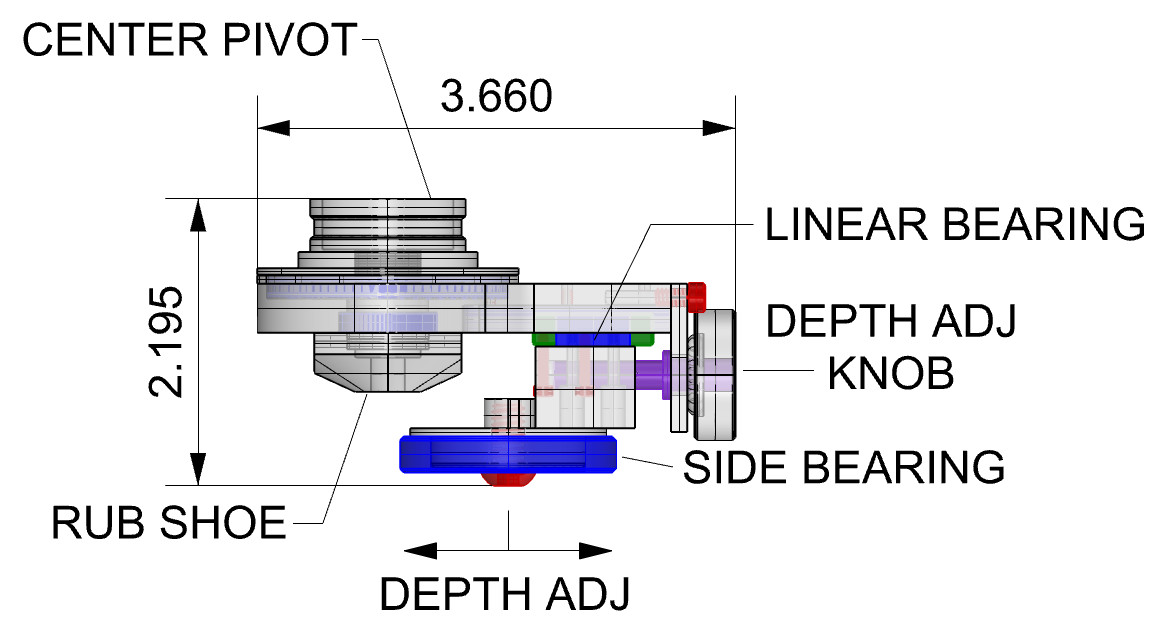

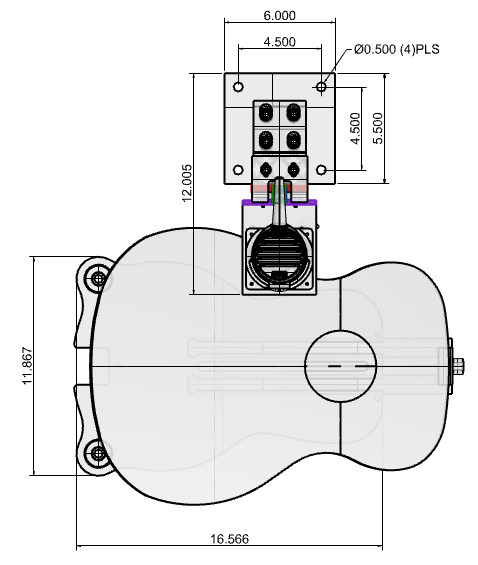

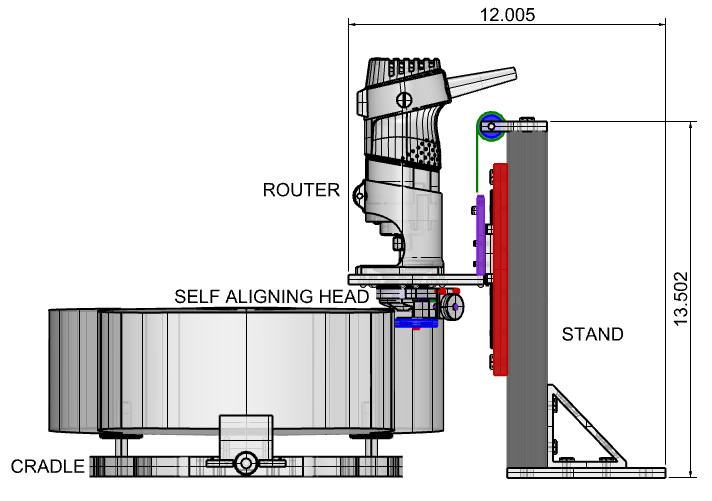

Dimensions:
Recommended Trim Router
DeWalt: DWP611
Bosh: "Colt"

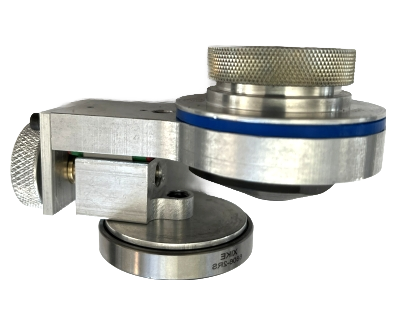

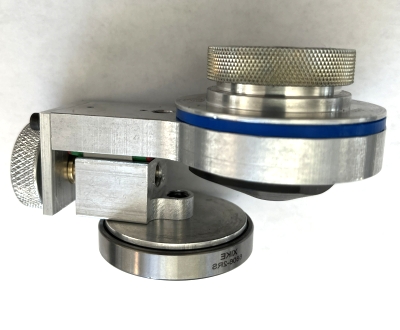

Self Aligning Head
This head is designed to align the router bit perpendicular to the curve of the guitar side.The principle behind the alignment is the offset of center of two bearings. The lower bearing move into or away from the center of the router bit via a small linear bearing.
$359.00

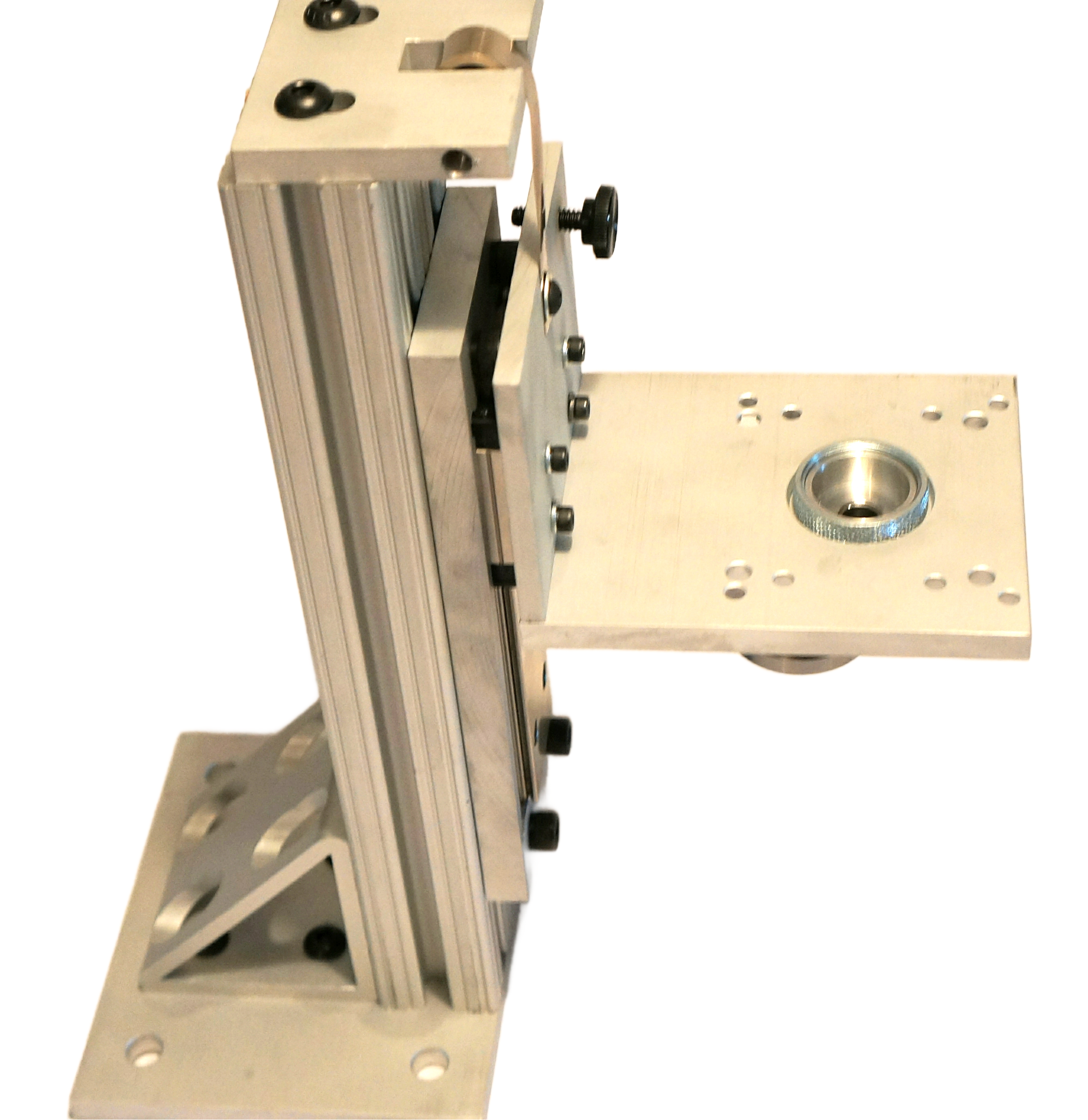

Self Aligning Stand
The stand is heavy duty with precision linear bearing allowing for a smooth up down motion without any play. The router mount can be moved up or down to accomodate any guitar holding cradle.
$349.00

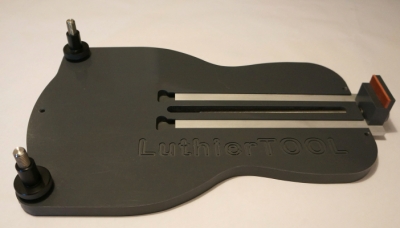

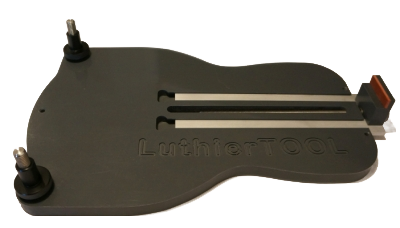

Self Aligning Guitar Cradle
This cradle is designed for a three point contact allowing the guitar to be clamped in place. The two adjustment knobs allows the guitar sides to be square with the table
$295.00
Self Aligning Uke Cradle
Like the guitar this cradle is designed for a three point contact allowing the uke to be clamped in place. The two adjustment knobs allows the uke sides to be square with the table
$295.00
